DC Planetary Gear Motor

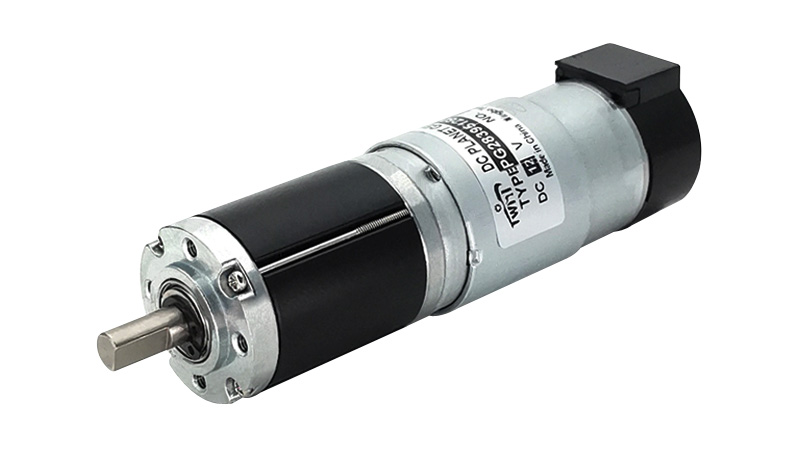

28mm Planetary Gear Motor (12~24V)

PG28M395 Series
Dia:Ø28×(68.5~88.9)mm
Rated torque:10kg.cm~50kg.cm
28mm Planetary Gear Motor (12~24V)
28mm Planetary Gear Motor (12~24V)
28mm Planetary Gear Motor (12~24V)
28mm Planetary Gear Motor (12~24V)
28mm Planetary Gear Motor (12~24V)

Description

PDF Download

Reviews

Typical Application Video

Application:Car power tailgate,Auto shutter,Blinding machine,ATM bank automatic system,Card conveyor,Automatic actuator, Household appliance.

From agriculture to commercial to medical to automotive and much more, we create solutions for businesses

in a wide range of industries. Check out some applications our motors and gears are used for.

The gearbox can be customized for different speeds and torque to meet application requirements, with high durability, high performance, high precision, high starting torque, low failure rate, small size, easy assembly, and disassembly.Optional features include encoders, noise suppressors, custom shafts, custom leads and terminations, custom mounting and rear shaft extensions.


PG28395 series  Gearmotor consist of 28mm PG28 type planetary gearbox and 28mm  RS-395 type brushed motor.
Product description
Product name PG28395 series,28mm diameter planet gear motor
Motor type carbon-brush commutator
Gear type Straight gearwheel planet gearhead
Housing material Steel
Geartrain material Steel , Powdered Metal
Bearing at output shaftDual Ball  bearing
Lubricant Grease for high-low temperature
Axial play <0.3mm
Radial play <0.05mm(5mm from mounting face)
Rotation direction CW/CCW reversible
Backlash at no-load <1°
Operating temperature range  -40 °C~+100°C
Noise (DB) <55DB measured at 30cm distance
Lifetime  1000+ hours (varies by application)
OEM & ODM Service Available
Certificate CE,ROHS,SGS,TUV,IATF16949
Encoder 3PPR,7PPR,13PPR ,Click ME-28 to see details
Options
---Magnetic encoder provides feedback for your accurate control of motor speed and positioning.
---Capacitor& resistor for EMC suppression.
---Special shaft material and dimensions.
---Custom design; OEM products available.
---Professional DC gear motor customization at various RPM, torques, OD, voltages,  IP rating , etc
Customized product show

Do you need special adaptation for planetary gear drived out of the standard type?


No problem,Besides the standard,we can provide you with the following: output shaft, front cover, intermediary plate,housing,performance,etc.

The following is the specification of the standard product.
Outline of gearmotor with encoder
Encoder specs
Packing and delivery

Fast delivery Date : 1-2 weeks for samples, 3-4 weeks for mass production.

*shockproof foam packing

*20 pcs each layer

*5 layers each carton

*carton meas.:32*28*26cm

*100pcs/ctn

*N.W.:20kgs

*G.W.:21kgs

*recycled wooden pallet

*stretch film

*binding tape

*Shipping mark on each carton and pallet
