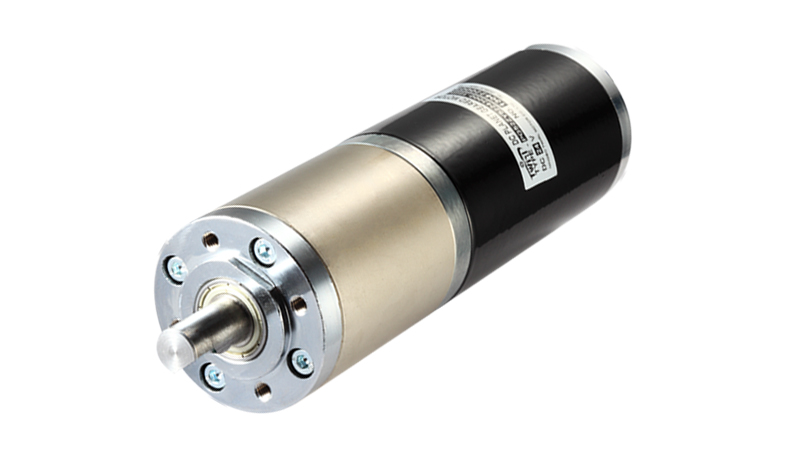

52mm Planetary Gear Motor (12~24V)

PG52ZY52 Series
Dia：Ø52×(98.5～145)mm
Rated torque:50kg.cm~300kg.cm

Get a Quote Now

Description

PDF Download

Reviews

Custom Planetary Gears. Housing diameter16 - 56 mm. High output torques. Low running noise. Large variety of ratios.Minimum backlash.High power density.Simple mounting.Lifetime lubrication.High efficiency.

PG52ZY52 series Gearmotor consist of 52mm PG52 series planetary gearbox and 52mm ZY52 series brushed motor.

Specifications

Product name	52mm diameter planet gear motor
Motor type	carbon-brush commutator
Gear type	Straight gearwheel planet gearhead
Gearbox housing material	1045 Steel
Geartrain material	40Cr Steel , Powder Metallurgy
Shaft material	40Cr Steel
Output shaft support	Dual Ball bearing
Rotation direction	CW/CCW reversible
OEM & ODM Service	Available
Certificate	CE,ROHS,SGS,TUV,IATF16949
Encoder	3PPR,7PPR,13PPR ,Click ME-3237D to see details
Shaft Configuration	D-cut,Keyway,Round ,Hexagon, Splined or other type
Customization item	speed , torque, flange , shaft, IP rating
Additional requirements	Lead wire, connector, coupling ,encoder,or other parts

Options

---Magnetic encoder provides feedback for your accurate control of motor speed and positioning.

---Power-on or power-off type electromagnetic brake.

---Capacitor& resistor for EMC suppression.

---Special shaft material and dimensions.

---Custom design; OEM products available.

---Professional DC gear motor customization at various RPM, torques, OD, voltages, IP rating , etc.

The following is the specification of the standard product.

CUSTOMIZED DESIGN WELCOME

Twirl can provide special shaft or flange version upon request. Gearbox design, Shaft Material, Flange shape and IP level can be made according to your requirement.

Packing and delivery

Fast delivery Date : 1-2 weeks for samples, 3-4 weeks for mass production.
