Brushless DC Motors

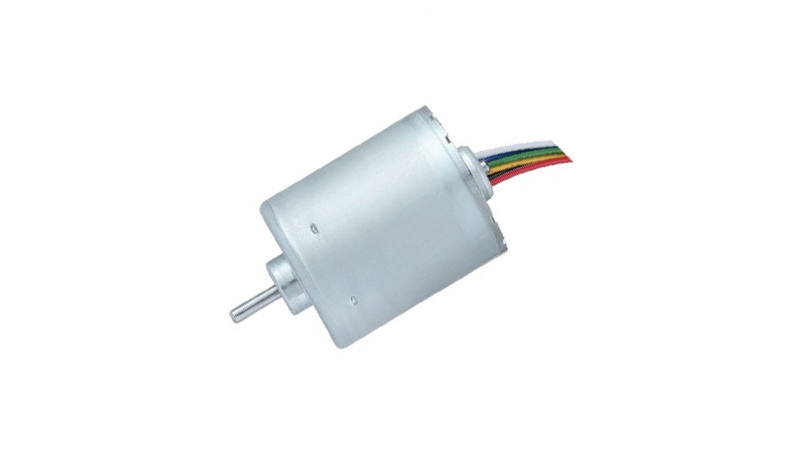

BLDC3640 24v brushless dc motor suppliers

BLDC3640 series Diameter 36mm
bldc motor with built-in controller
Rated power10~ 30Watt
BLDC3640 24v brushless dc motor suppliers
BLDC3640 24v brushless dc motor suppliers

Description

Reviews

Benefits of the brushless motor
DC motors with no brushes mean no mechanical contact, no dust and no sparks.There are no motor brushes to wear out because the windings are electrically commutated.​Exquisitely efficient small form factor BLDC motor that has peak operating efficiency . High torque from a small form factor, with low power consumption and peak performance at lower RPM for quiet operation.
Speed and direction is controlled easily and accurately, offering you a full range of options with every motor.
The  Brushless Motors offers distinct advantages over the competition: exceptionally long service life (over 20000 operating hours), very low sound level (no brushed switching), good efficiency (optimized motor control), integrated sensors and excellent dynamics.
This motor features built-in controls,versatile and very simple to use.
Why do we use BLDC motors?
In manufacturing, brushless motors are primarily used for motion control, positioning or actuation systems. Brushless motors are ideally suited for manufacturing applications because of their high power density, good speed-torque characteristics, high efficiency, wide speed ranges and low maintenance.
BL3657 Outline
Motor Data
 Bushless motor Connection
How to operate the brushless wires?

This motor features built-in controls,versatile and very simple to use.

1)Red wire(+) of the controller is connected to +24VDC, and black wire(-) to GND.

2)Green wire is connected to +5VDC, and black wire to GND

3)When the white wire is shut off ,the motor runs at the highest speed with CW.

4)The motor stops running when the white wire is connected to the black one.

5)When the yellow wire Is connected to black one, the motor runs with CCW.

6)The blue wire which can be detected by OSC means speed signal output.
