DC Planetary Gear Motor

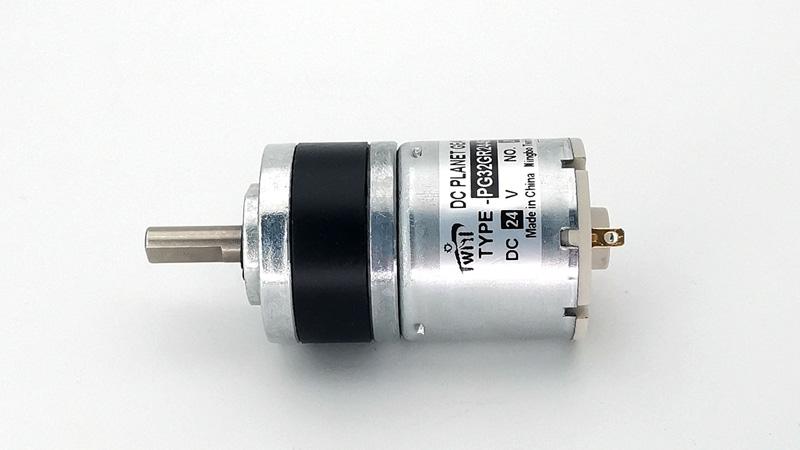

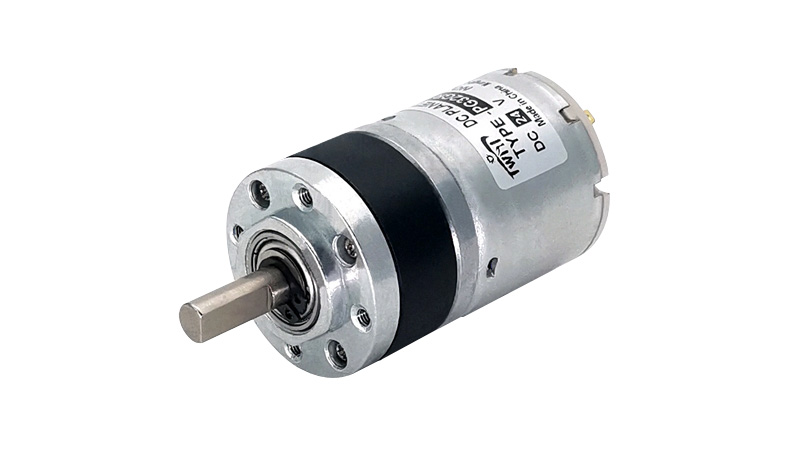

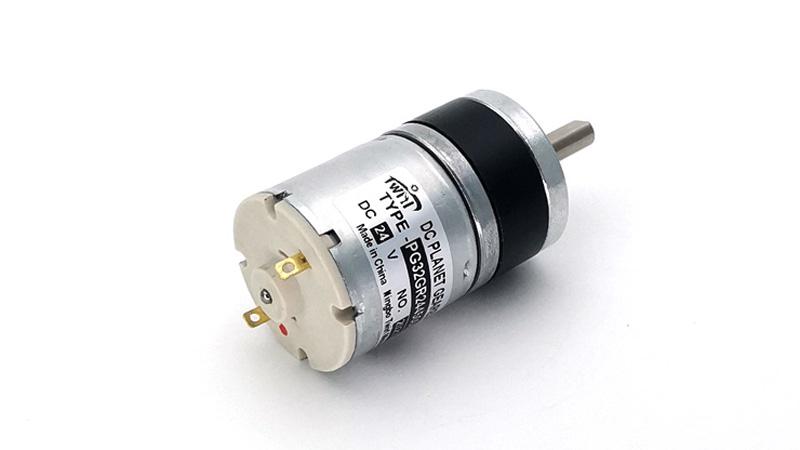

32mm Planetary Gear Motor (1~8 Watt)

PG32GR series
Size:Ø32×(49~73)mm
Rated torque:10kg.cm~50kg.cm
32mm Planetary Gear Motor (1~8 Watt)
32mm Planetary Gear Motor (1~8 Watt)
32mm Planetary Gear Motor (1~8 Watt)
32mm Planetary Gear Motor (1~8 Watt)

Description

PDF Download

Reviews

20+Years  Experience In The Design And Manufacturing Of Small Gear Motors. Leaders In Custom Gear Motors. We Work With You Throughout The Entire Process.  IATF16949 Certified.In Business.Customer Focused.

High Quality Precision Gears Cut to Your Company's Specifications。Custom, Large Volume, Gear Manufacturer. Made in the China.Types:  Types: spur Gear motor, planetary gear motor,worm gear motor , Speed Reducer.

PG32GR series  Gearmotor consist of 32mm planetary PG32 series gearbox and 32mm  GR seriess brushed motor.
Quick Details
Place of Origin Zhejiang,China
Brand Name Twirl Motor
Certification CE, ROHS, SGS, TUV, IATF16949
OEM & ODM Service Available
Supply Ability 180000 Pieces/per Month
Lead time  1-2 weeks for samples, 3-4 weeks for mass production.
Sample MOQ  1 Piece
Mass production MOQ 500 pieces
Payment term T/T, Paypal ,WesternUnion
Product features
Product name 32mm diameter planet gear motor
Motor type carbon-brush commutator
Gear type Straight gearwheel,metal  planet gearhead
Customization item speed ,torque, flange ,shaft, IP rating  or other item
Voltage: 12VDC,24VDC,36VDC or customization
Output Shaft Shape D-cut,Keyway,Round ,Hexagon, or customized
Output Power 2~5 Watt or customized
Two channel hall effect encoder 3PPR,7PPR,Click ME-GR to see details
Noise (DB)
Lifetime  1000+ hours (varies by application)
Gearbox data (PG32)
 Gearbox housing material Powder Metallurgy
Geartrain material 40Cr Steel , Powder Metallurgy
Bearing at output shaft Dual Ball  bearing
Lubricant in gearbox  Graphene oil
Axial play
Radial play
Rotation direction CW/CCW reversible
Backlash at no-load
Operating temperature range  -40 °C~+100°C
Motor data
How to calculate the output data of  the geared motor?
1:Output  no load speed=Motor Speed(No-load)/Reduction Ratio
2. Output rated load torque= motor rated torque X reduction ratio X gearbox efficiency

An example of  PG32 Gearbox+Motor assembly
Model Number  PG32 GR124500-585K
Reduction ratio585:1
Motor name GR124500
Output  no load speed7.6rpm +/- 10%
Output rated load speed6rpm  +/- 10%
Output rated load torque 16kg.cm
 Geared motor Outline
CUSTOMIZED DESIGN WELCOME
Twirl  can provide special shaft or flange version upon request. Gearbox design, Shaft Material, Flange shape and IP level can be made according to your requirement.
Packing and delivery
