Solar Tracker Motor

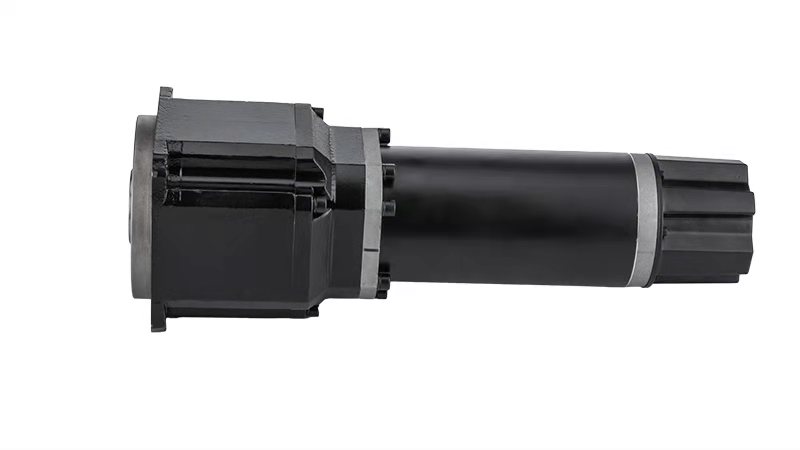

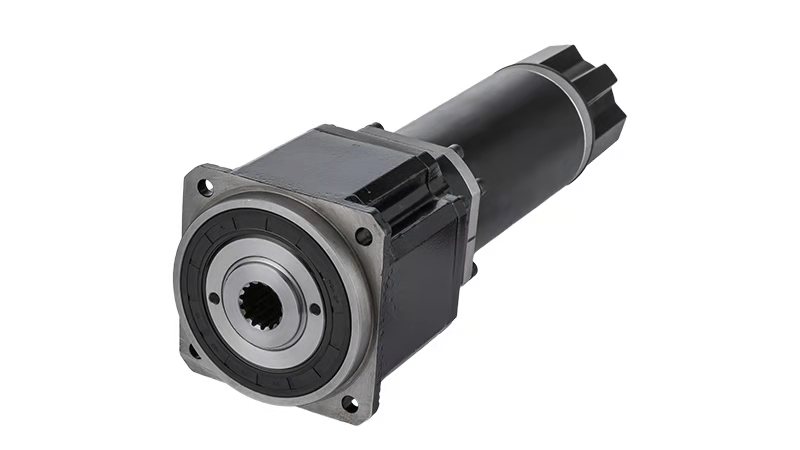

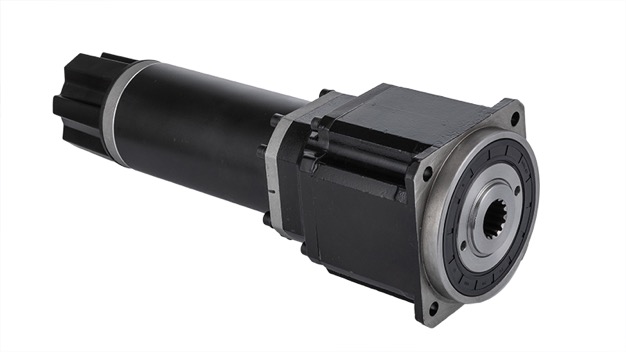

Planetary gearmotors for solar tracker

Planetary gear motor with brake
24V,2.5rpm ,290Nm
Planetary Gear Design,OEM
Planetary gearmotors for solar tracker
Planetary gearmotors for solar tracker
Planetary gearmotors for solar tracker
Planetary gearmotors for solar tracker

Description

Reviews

Planetary gearmotors for solar photovoltaic tracking applications
Motor designs for solar power applications must stand up to extremes in temperature (both absolute and over a broad range), humidity and highly corrosive salt sprays, wind loads, and abrasive airborne particulate matter. Because they are exposed to the elements, motors should be designed to IP65 (protected against dust and water jet spray) or IP67 (protected against dust and effects of immersion in water to a depth between 15 cm and 1 m).
Both the motors and the gearheads attached to them must be optimized for the low speeds and high torque that characterize solar tracking.  Click here to see more.

Video
Specifications
Product name115mm diameter planet gear motor
Motor type carbon-brush commutator
Gear type Straight gearwheel planet gearhead
Housing material Steel
Geartrain material Steel
Output shaft support Dual Ball  bearing
Rotation direction CW/CCW reversible
OEM & ODM Service Available
Certificate CE,ROHS,SGS,TUV,IATF16949
Shaft Configuration D-cut,Keyway,Round ,Hexagon, Splined or other type
Customization item speed , torque,  flange , shaft,  IP rating
Additional requirements  Lead wire, connector, coupling ,encoder, brake ,or other parts
P/N PG115ZY82242200-672K
Reduction ratio 672
Output  No load speed 3.3rpm
Output rated load speed 2.5rpm
Output rated load torque 290Nm
Outline
