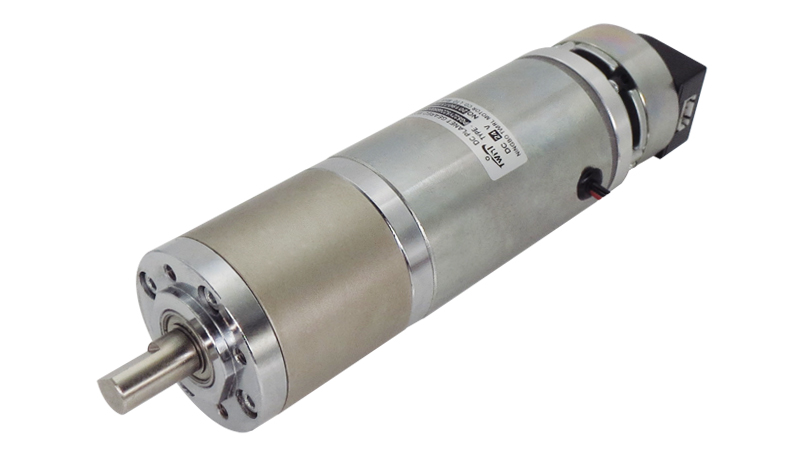

DC Planetary Gear Motor

24V DC Gear Motor High Torque

PG52ZY52 series Diameter52mm
13ppr encoder and electromagnetic brake
Rated torque:50kg.cm~300kg.cm
24V DC Gear Motor High Torque
24V DC Gear Motor High Torque

Description

Reviews

Product description
Product name PG52ZY52 series,52mm diameter planet gear motor
Motor type carbon-brush commutator
Gear type Straight gearwheel planet gearhead
Housing material Steel
Geartrain material Steel , Powdered Metal
Bearing at output shaft Ball  bearing
Lubricant Grease for high-low temperature
Axial play
Radial play
Rotation direction CW/CCW reversible
Backlash at no-load
Operating temperature range  -40 °C~+100°C
Noise (DB)
Lifetime  1000+ hours (varies by application)
OEM & ODM Service Available
Certificate CE,ROHS,SGS,TUV,IATF16949
Encoder 3PPR ,Click ME-3237D to see details
Brake rated torque 2Nm
Brake rated  working torque 24VDC 12VDC
Brake rated power 9.7Watt
Brake Specifications

It is a power off type electromagnetic brake which is connected directly with the motor.

The motor will stop instantly  and keep load when the supply power is off.

It is specially suitable for the safety brake in the condition of unconsciously power off.

Firstly connect the brake wire to the 12V/24V power, and then connect the motor wire to another  12V/24V power.

The  time interval  should above 300mS.

When the motor power is on,the brake release.When the motor  power is off,the brake will operate.



How does an electromagnetic brake work? Please to see it.

Packing and delivery

Fast delivery Date : 1-2 weeks for samples, 3-4 weeks for mass production.

*shockproof foam packing

*20 pcs each layer

*5 layers each carton

*carton meas.:32*28*26cm

*100pcs/ctn

*N.W.:20kgs

*G.W.:21kgs

*recycled wooden pallet

*stretch film

*binding tape

*Shipping mark on each carton and pallet
