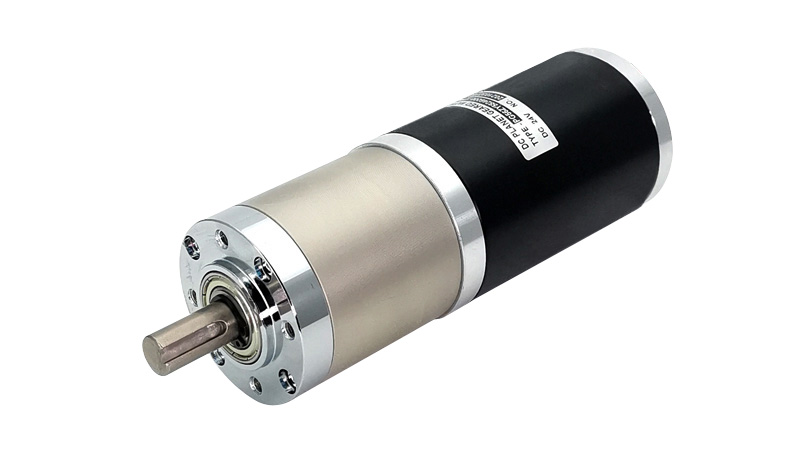

DC Planet Gear Motor

56mm 12v electric motor with gearbox

PG56ZY58 Series
Dia:Ø56×(114~173)mm
Rated torque:100kg.cm~400kg.cm
56mm 12v electric motor with gearbox
56mm 12v electric motor with gearbox

Description

PDF Download

Reviews

Product description
Product name PG56ZY58 series,56mm diameter planet gear motor
Motor type carbon-brush commutator
Gear type Straight gearwheel planet gearhead
Housing material Steel
Geartrain material Steel , Powdered Metal
Bearing at output shaft Ball  bearing
Lubricant Grease for high-low temperature
Axial play <0.3mm
Radial play <0.05mm(5mm from mounting face)
Rotation direction CW/CCW reversible
Backlash at no-load <1°
Operating temperature range  -40 °C~+100°C
Noise (DB) <55DB measured at 30cm distance
Lifetime  1000+ hours (varies by application)
OEM & ODM Service Available
Certificate CE,ROHS,SGS,TUV,IATF16949
Encoder13PPR ,Click ME-3237 to see details
56mm 12v electric motor with gearbox
Customized product show

Do you need special adaptation for planetary gear drived out of the standard type?


No problem,Besides the standard,we can provide you with the following: output shaft, front cover, intermediary plate,housing,performance,etc.

 Standard  motor type

Customized shaft,brake and encoder

 Standard  motor with encoder

Customized gear ring and brake

Packing and delivery

Fast delivery Date : 1-2 weeks for samples, 3-4 weeks for mass production.

*shockproof foam packing

*4 pcs each layer

*3 layers each carton

*carton meas.:32*28*26cm

*12pcs/ctn

*N.W.:22kgs

*G.W.:21kgs

*recycled wooden pallet

*stretch film

*binding tape

*Shipping mark on each carton and pallet
