DC Planetary Gear Motor

36mm 12v gear motor with encoder high torque

PG36M555 Series
Dia:Ø36×(84~110)mm
Rated torque:20kg.cm~100kg.cm
36mm 12v gear motor with encoder high torque
36mm 12v gear motor with encoder high torque
36mm 12v gear motor with encoder high torque
36mm 12v gear motor with encoder high torque
36mm 12v gear motor with encoder high torque

Description

PDF Download

Reviews

Twirl  is a leading manufacturer of iron core (brushed), brushless, and coreless DC gear motors. We offer an extensive selection of custom-designed gear motors to specifically match your project’s requirements. This includes a wide selection of motors, voltages, shaft configurations, and output speeds for low- and high-torque products.

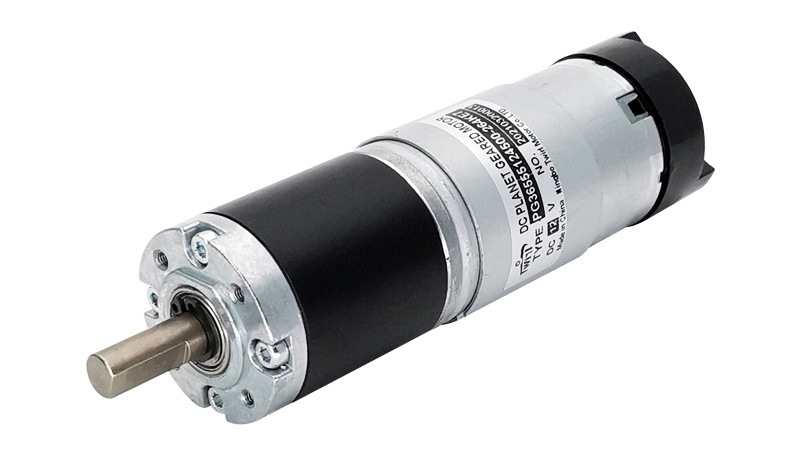

PG36555 series  Gearmotor consist of 36mm PG36 type planetary gearbox and 36mm  RS-555 type brushed motor,with ME-37 series encoder

The gearbox can be customized for different speeds and torque to meet application requirements, with high durability, high performance, high precision, high starting torque, low failure rate, small size, easy assembly, and disassembly.Optional features include encoders, noise suppressors, custom shafts, custom leads and terminations, custom mounting and rear shaft extensions.

Product description
Product name PG36555 series,36mm diameter planet gear motor
Motor type carbon-brush commutator
Gear type Straight gearwheel planet gearhead
Housing material Steel
Geartrain material Steel , Powdered Metal
Bearing at output shaft Ball  bearing
Lubricant Grease for high-low temperature
Axial play
Radial play
Rotation direction CW/CCW reversible
Backlash at no-load
Operating temperature range  -40 °C~+100°C
Noise (DB)
Lifetime  1000+ hours (varies by application)
OEM & ODM Service Available
Certificate CE,ROHS,SGS,TUV,IATF16949
Encoder 3PPR,7PPR ,Click ME-37 to see details
KeyFeatures
---36mm Body Diameter.
---Motor type-Brush commutated DC motor.
---Gearhead Type-Planet.
---Ball bearing at output shaft.
---Operation in both directions of rotation(CW & CCW).
---Various gear ratios enable either speed reduction or to increase the torque capability.
---Advantageous torque with minimum space requirements.
---Suitable for continuous, reversing and intermittent operation.
---Can be installed in any mounting position.
---High Torque, Low Energy Consumption, Low Noise.
Options
---Magnetic encoder provides feedback for your accurate control of motor speed and positioning.
---Capacitor& resistor for EMC suppression.
---Special shaft material and dimensions.
---Custom design; OEM products available.
---Professional DC gear motor customization at various RPM, torques, OD, voltages,  IP rating , etc.
CUSTOMIZED DESIGN WELCOME
Twirl  can provide special shaft or flange version upon request. Gearbox design, Shaft Material, Flange shape and IP level can be made according to your requirement.
Certificates&Qualifications
CE, ROHS, SGS, TUV, IATF16949 quality management system
The following is the specification of the standard product.
Outline of gearmotor with encoder
Encoder specs
Packing and delivery

Fast delivery Date : 1-2 weeks for samples, 3-4 weeks for mass production.

*shockproof foam packing

*10 pcs each layer

*4 layers each carton

*carton meas.:32*28*26cm

*40pcs/ctn

*N.W.:20kgs

*G.W.:21kgs

*recycled wooden pallet

*stretch film

*binding tape

*Shipping mark on each carton and pallet
