DC Planet Gear Motor
DC Planet Gear Motor

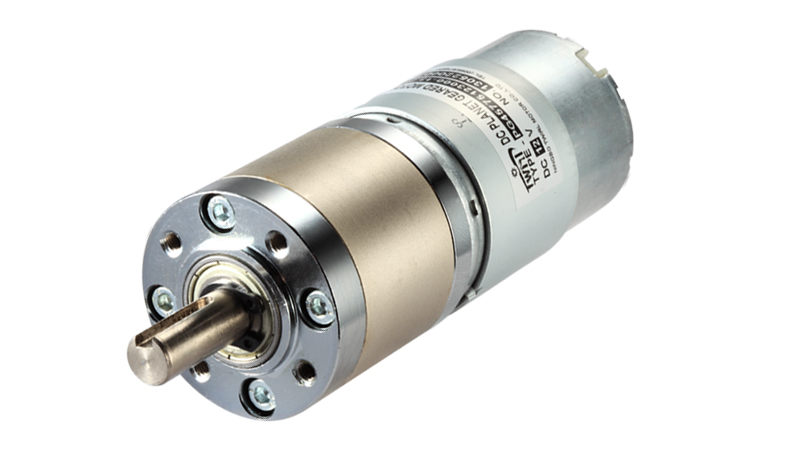

45mm high torque low speed dc gear motor

PG45M775 Series
Dia:Ø45×(100~146)mm
Rated torque:50kg.cm~200kg.cm
45mm high torque  low speed dc gear motor
45mm high torque  low speed dc gear motor

Description

PDF Download

Reviews

Product description
Product name PG45775 series,45mm diameter planet gear motor
Motor type carbon-brush commutator
Gear type Straight gearwheel planet gearhead
Housing material Steel
Geartrain material Steel , Powdered Metal
Bearing at output shaft Ball  bearing
Lubricant Grease for high-low temperature
Axial play <0.3mm
Radial play <0.05mm(5mm from mounting face)
Rotation direction CW/CCW reversible
Backlash at no-load <1°
Operating temperature range  -40 °C~+100°C
Noise (DB) <55DB measured at 30cm distance
Lifetime  1000+ hours (varies by application)
OEM & ODM Service Available
Certificate CE,ROHS,SGS,TUV,IATF16949
Encoder 3PPR,7PPR,13PPR ,Click ME-775 to see details
Customized product show

Do you need special adaptation for planetary gear drived out of the standard type?


No problem,Besides the standard,we can provide you with the following: output shaft, front cover, intermediary plate,housing,performance,etc.

 Standard  motor with encoder

Customized front cover and waterproof end cover

Customized shaft and encoder

Customized gear ring

Typical Application Video

Application:Car power tailgate,Auto shutter,Blinding machine,ATM bank automatic system,Card conveyor,Automatic actuator, Household appliance.


From agriculture to commercial to medical to automotive and much more, we create solutions for businesses

in a wide range of industries. Check out some applications our motors and gears are used for.

Packing and delivery

Fast delivery Date : 1-2 weeks for samples, 3-4 weeks for mass production.

*shockproof foam packing

*5 pcs each layer

*4 layers each carton

*carton meas.:32*28*26cm

*20pcs/ctn

*N.W.:19kgs

*G.W.:18.4kgs

*recycled wooden pallet

*stretch film

*binding tape

*Shipping mark on each carton and pallet
