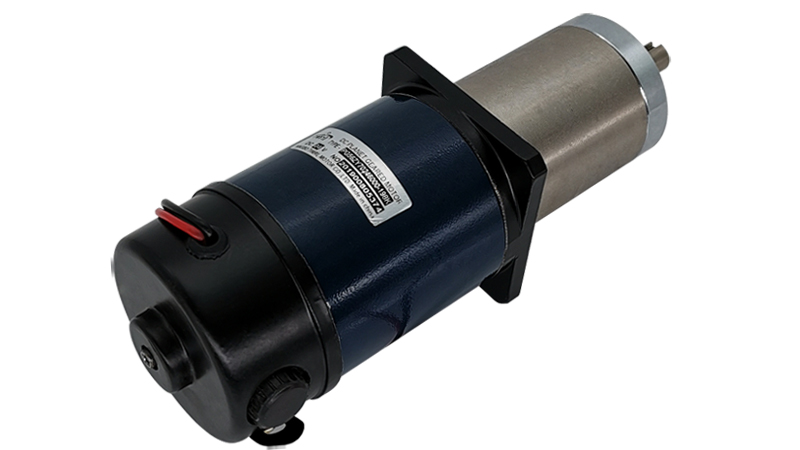

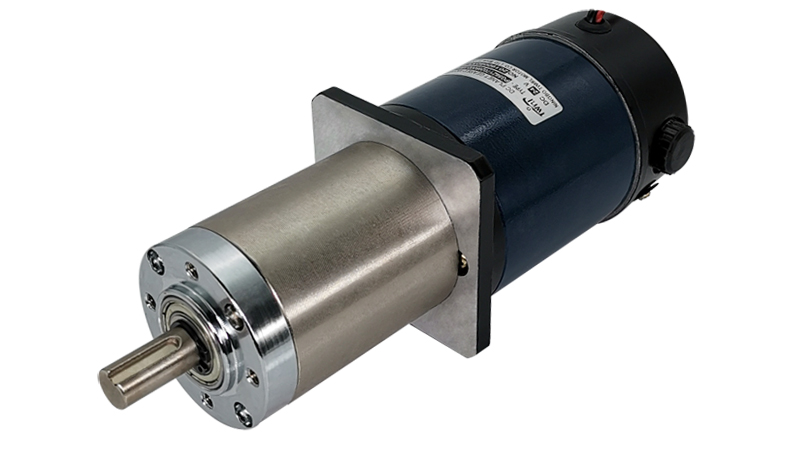

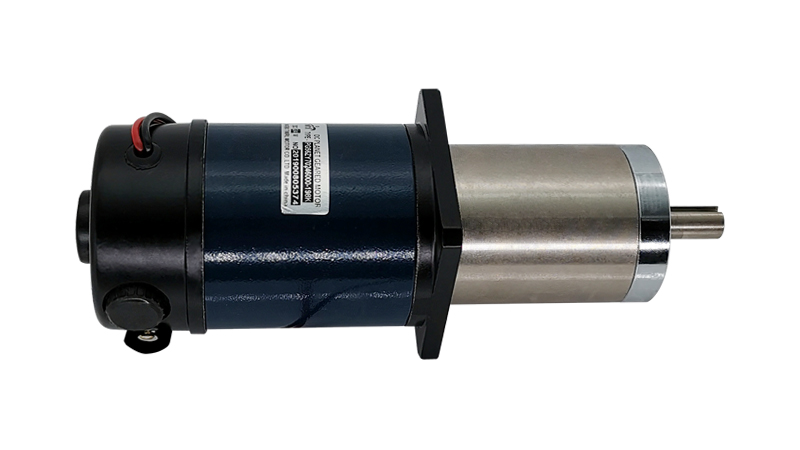

DC Planet Gear Motor

56mm 24v dc gear motor high torque

PG56ZY70 series
Size:Ø56×(137~195)mm
Rated torque:100kg.cm~400kg.cm
56mm 24v dc gear motor high torque
56mm 24v dc gear motor high torque
56mm 24v dc gear motor high torque
56mm 24v dc gear motor high torque

Description

Reviews

Product description
Product name PG56ZY70 series,56mm diameter planet gear motor
Motor type carbon-brush commutator
Gear type Straight gearwheel planet gearhead
Housing material Steel
Geartrain material Steel , Powdered Metal
Bearing at output shaft Ball  bearing
Lubricant Grease for high-low temperature
Axial play <0.3mm
Radial play <0.05mm(5mm from mounting face)
Rotation direction CW/CCW reversible
Backlash at no-load <1°
Operating temperature range  -40 °C~+100°C
Noise (DB) <60DB measured at 30cm distance
Lifetime  1000+ hours (varies by application)
OEM & ODM Service Available
Certificate CE,ROHS,SGS,TUV,IATF16949
56mm 24v dc gear motor high torque
Packing and delivery

Fast delivery Date : 1-2 weeks for samples, 3-4 weeks for mass production.

*shockproof foam packing

*4 pcs each layer

*3 layers each carton

*carton meas.:32*28*26cm

*12pcs/ctn

*N.W.:20kgs

*G.W.:21kgs

*recycled wooden pallet

*stretch film

*binding tape

*Shipping mark on each carton and pallet
