42mm DC Motor with encoder

PG42775 series Diameter 42mm
dc brush gear motor with encoder
Rated power 30 Watt

Get a Quote Now

Description

PDF Download

Reviews

OEM custom engineered motors and gear motors.Twirl Motor designs each motor uniquely for your application.

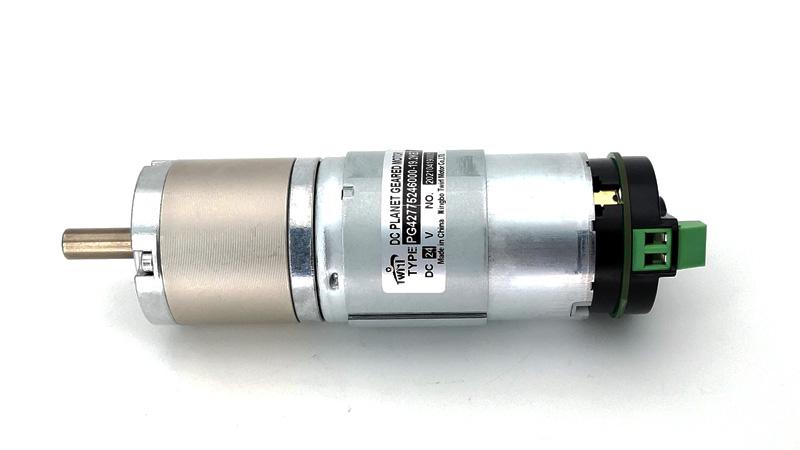

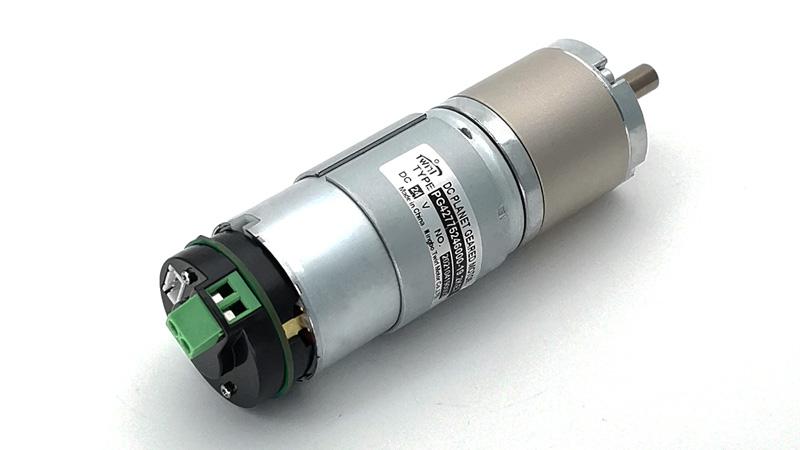

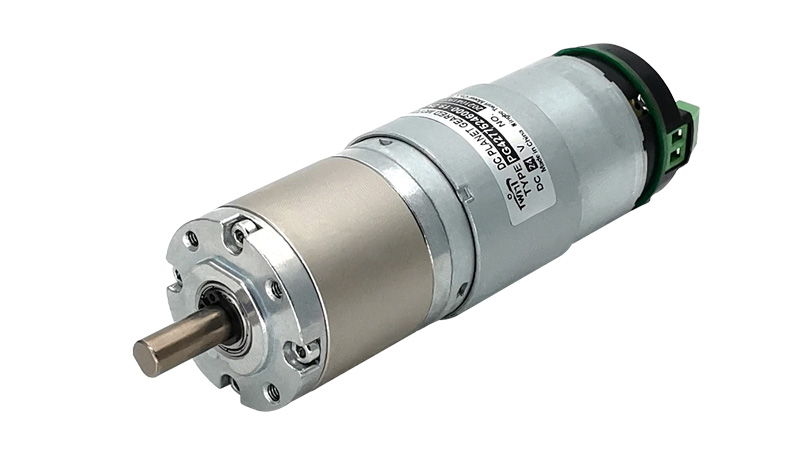

PG42775 series Gearmotor consist of 42mm PG42 type planetary gearbox and 42mm RS-775 type brushed motor,with magnet encoder

The gearbox can be customized for different speeds and torque to meet application requirements, with high durability, high performance, high precision, high starting torque, low failure rate, small size, easy assembly, and disassembly.Optional features include encoders, noise suppressors, custom shafts, custom leads and terminations, custom mounting and rear shaft extensions.

Specifications

Product name	42mm diameter planet gear motor
Motor type	carbon-brush commutator
Gear type	Straight gearwheel planet gearhead
Gearbox housing material	1045 Steel
Geartrain material	40Cr Steel , Powder Metallurgy
Shaft material	40Cr Steel
Output shaft support	Dual Ball bearing
Rotation direction	CW/CCW reversible
OEM & ODM Service	Available
Certificate	CE,ROHS,SGS,TUV,IATF16949

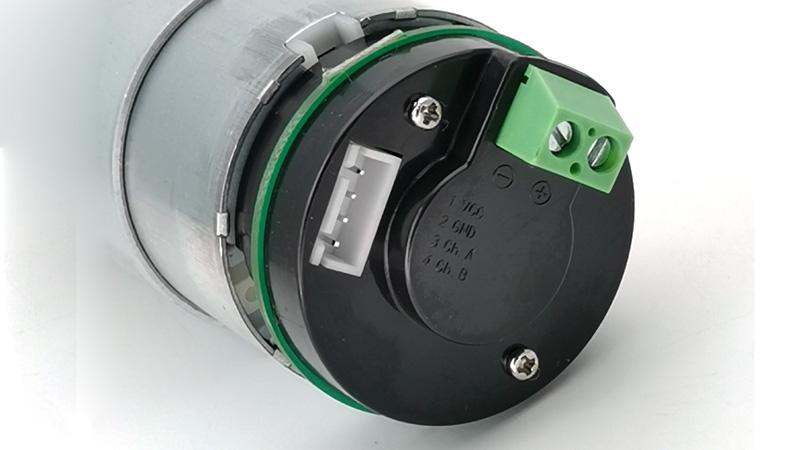

Encoder	3PPR,7PPR,13PPR ,Click ME-775 to see details
Shaft Configuration	D-cut,Keyway,Round ,Hexagon, Splined or other type
Customization item	speed , torque, flange , shaft, IP rating
Additional requirements	Lead wire, connector, coupling ,encoder,or other parts

Key Features

---Various gear ratios enable either speed reduction or to increase the torque capability.

---Advantageous torque with minimum space requirements.

---Suitable for continuous, reversing and intermittent operation.

---Can be installed in any mounting position.

---High Torque, Low Energy Consumption, Low Noise.

Options

---Magnetic encoder provides feedback for your accurate control of motor speed and positioning.

---Capacitor& resistor for EMC suppression.

---Special shaft material and dimensions.

---Custom design; OEM products available.

---Professional DC gear motor customization at various RPM, torques, OD, voltages, IP rating , etc.

CUSTOMIZED DESIGN WELCOME

Twirl can provide special shaft or flange version upon request. Gearbox design, Shaft Material, Flange shape and IP level can be made according to your requirement.

Certificates&Qualifications

CE, ROHS, SGS, TUV, IATF16949 quality management system

The following is the specification of the standard product.
