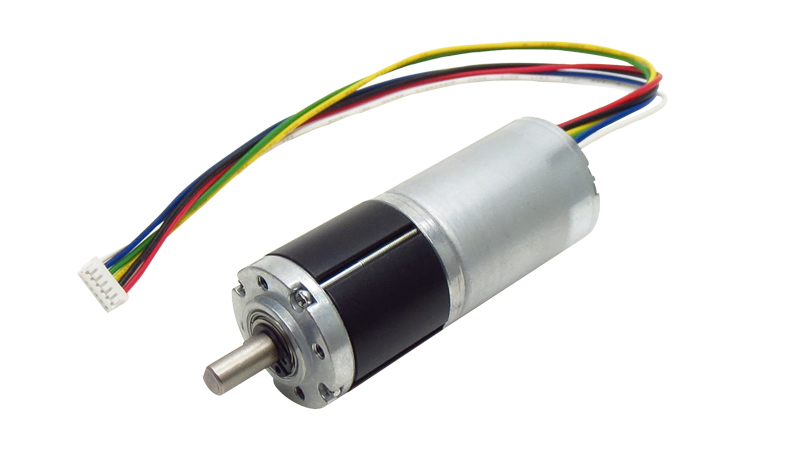

PG28BL28 series Gearmotors consist of 28mm planetary gearboxes and 28mm BLDC motors.
The planetary gear motors are equipped with a hall sensor type brushless DC motor to increase the torque and lower the output speed to meet your application or project demands.Twirl offers rushless DC Gearmotors with hall only feedback or with a control board that is fully integrated to the internal motor.When mated to our planetary gearbox, this brushless gearmotor offers extremely long life and high torque in a compact size.
Benefits of the brushless motor
DC motors with no brushes mean no mechanical contact, no dust and no sparks.There are no motor brushes to wear out because the windings are electrically commutated.Exquisitely efficient small form factor BLDC motor that has peak operating efficiency . High torque from a small form factor, with low power consumption and peak performance at lower RPM for quiet operation.
Speed and direction is controlled easily and accurately, offering you a full range of options with every motor.
The Brushless Motors offers distinct advantages over the competition: exceptionally long service life (over 20000 operating hours), very low sound level (no brushed switching), good efficiency (optimized motor control), integrated sensors and excellent dynamics.
This motor features built-in controls,versatile and very simple to use.
Why do we use BLDC motors?
In manufacturing, brushless motors are primarily used for motion control, positioning or actuation systems. Brushless motors are ideally suited for manufacturing applications because of their high power density, good speed-torque characteristics, high efficiency, wide speed ranges and low maintenance.
Product features
CUSTOMIZED DESIGN WELCOME
Twirl can provide special shaft or flange version upon request. Gearbox design, Shaft Material, Flange shape and IP level can be made according to your requirement.
Twirl provide planetary brushless motor gearbox . Brushless dc motors integrated with the gearbox are perfect solutions for motion control applications where high accuracy, maximum efficiency and a small package are required.Various custom options are also available as below for your specific needs.
Certification
CE, ROHS, SGS, TUV, IATF16949
OEM & ODM Service
Available
Gear type
metal planetary gearhead
Motor type
DC brushless motor
Shaft Configuration
D-cut,Keyway,Round ,Hexagon, Splined or customized
Voltage:
12VDC,24VDC,36VDC
Customization item
speed , torque, flange , shaft, IP rating
Additional requirements
Lead wire, connector, coupling or other parts
Planetary Gearbox features
Gearbox housing material
1045 Steel
Geartrain material
40Cr Steel , Powder Metallurgy
Shaft material
40Cr Steel
Bearing at output shaft
Dual Ball bearing
Lubricant in gearbox
Graphene oil
Axial play
Radial play
Rotation direction
CW/CCW reversible
Backlash at no-load
Operating temperature range
-40 °C～+100°C
How to calculate the output data of the geared motor?
1:Output no load speed=Motor no load speed /reduction ratio
2:Output rated load speed=Motor rated speed /reduction ratio
3.Output rated load torque= motor rated torque X reduction ratio X gearbox efficiency
Bushless motor Connection
How to operate the brushless wires?
This motor features built-in controls,versatile and very simple to use.
1) Red wire(+) of the controller is connected to +12VDC, and balck wire (- )to GND.
2)The green linkes the PWM
3)When the white wire is shut off ,the motor runs at full speed with CW
4)The motor stops running when the white wire is connected to black wire.
5)When the yellow wire was connected to black one, the motor runs with CCW
6)The blue wire can be detected by OSC means speed signal output
7)When the green linkes the black,motor is running
