DC Planetary Gear Motor

36mm 12 volt dc motor with gearbox

PG36555 series
Size:Ø36×(74~97)mm
Rated torque:10kg.cm~50kg.cm
36mm 12 volt dc motor with gearbox
36mm 12 volt dc motor with gearbox
36mm 12 volt dc motor with gearbox
36mm 12 volt dc motor with gearbox

Description

Reviews

Twirl Motor  Focus on: DC and Gear Motor with Customizable Design
Enabling Your Project with Advanced Motor Technology.

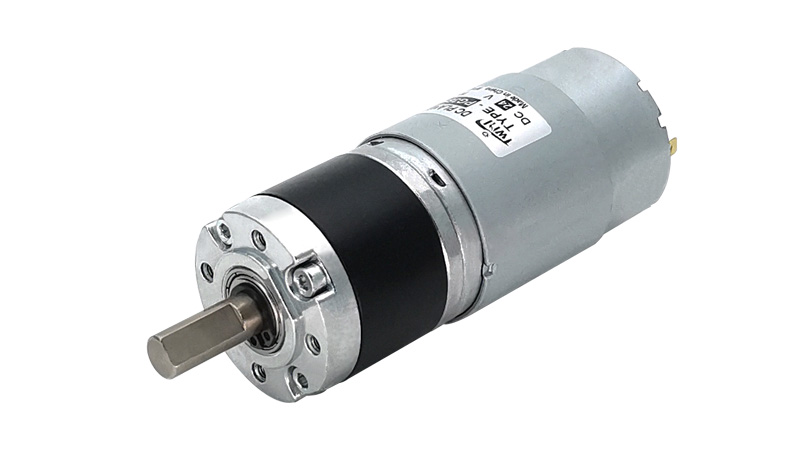

PG36555 series  Gearmotor consist of 36mm PG36 type planetary gearbox and 36mm RS-555 type  brushed motor.

The gearbox can be customized for different speeds and torque to meet application requirements, with high durability, high performance, high precision, high starting torque, low failure rate, small size, easy assembly, and disassembly.Optional features include encoders, noise suppressors, custom shafts, custom leads and terminations, custom mounting and rear shaft extensions.

Specifications
Product name 36mm diameter planet gear motor
Motor type carbon-brush commutator
Gear type Straight gearwheel planet gearhead
Gearbox housing material 1045 Steel
Geartrain material 40Cr Steel , Powder Metallurgy
Shaft material 40Cr Steel
Output shaft support Dual Ball  bearing
Rotation direction CW/CCW reversible
OEM & ODM Service Available
Certificate CE,ROHS,SGS,TUV,IATF16949
Encoder 3PPR,7PPR,Click ME-37 to see details
Shaft Configuration D-cut,Keyway,Round ,Hexagon, Splined or other type
Customization item speed , torque,  flange , shaft,  IP rating
Additional requirements  Lead wire, connector, coupling ,encoder,or other parts
Key Features
---Various gear ratios enable either speed reduction or to increase the torque capability.
---Advantageous torque with minimum space requirements.
---Suitable for continuous, reversing and intermittent operation.
---Can be installed in any mounting position.
---High Torque, Low Energy Consumption, Low Noise.
Options
---Magnetic encoder provides feedback for your accurate control of motor speed and positioning.
---Capacitor& resistor for EMC suppression.
---Special shaft material and dimensions.
---Custom design; OEM products available.
---Professional DC gear motor customization at various RPM, torques, OD, voltages,  IP rating , etc.
CUSTOMIZED DESIGN WELCOME
Twirl  can provide special shaft or flange version upon request. Gearbox design, Shaft Material, Flange shape and IP level can be made according to your requirement.
Certificates&Qualifications
CE, ROHS, SGS, TUV, IATF16949 quality management system
The following is the specification of the standard product.
