DC Planetary Gear Motor

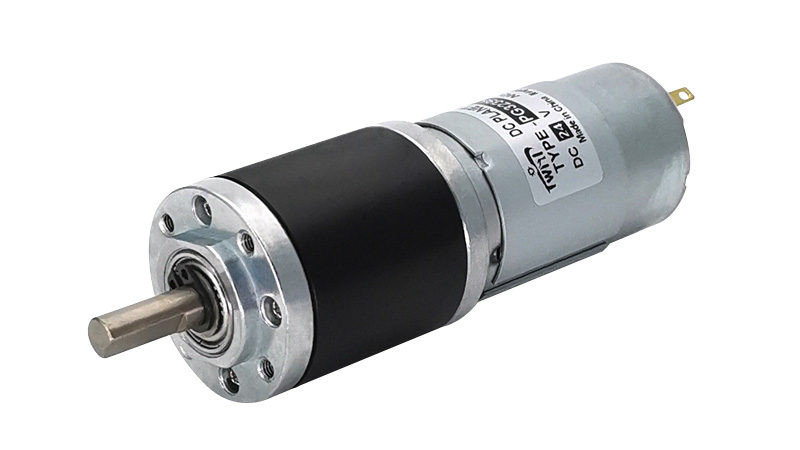

32mm Planetary Gear Motor (3~10 Watt)

PG32395 series
Size:Ø32×(49~73)mm
Rated torque:10kg.cm~50kg.cm
32mm Planetary Gear Motor (3~10 Watt)
32mm Planetary Gear Motor (3~10 Watt)
32mm Planetary Gear Motor (3~10 Watt)
32mm Planetary Gear Motor (3~10 Watt)

Description

Reviews

PG32395 series  Gearmotor consist of 32mm PG32 type planetary gearbox and RS-395 type  brushed motor.

The gearbox can be customized for different speeds and torque to meet application requirements, with high durability, high performance, high precision, high starting torque, low failure rate, small size, easy assembly, and disassembly.Optional features include encoders, noise suppressors, custom shafts, custom leads and terminations, custom mounting and rear shaft extensions.


20+Years  Experience In The Design And Manufacturing Of Small Gear Motors. Leaders In Custom Gear Motors. We Work With You Throughout The Entire Process.  IATF16949 Certified.In Business.Customer Focused.

Specifications
Product name 32mm diameter planet gear motor
Motor type carbon-brush commutator
Gear type Straight gearwheel planet gearhead
Gearbox housing material 1045 Steel
Geartrain material 40Cr Steel , Powder Metallurgy
Shaft material 40Cr Steel
Output shaft support Dual Ball  bearing
Rotation direction CW/CCW reversible
OEM & ODM Service Available
Certificate CE,ROHS,SGS,TUV,IATF16949
Encoder 3PPR,7PPR ,Click ME-28 to see details
Shaft Configuration D-cut,Keyway,Round ,Hexagon, Splined or other type
Customization item speed , torque,  flange , shaft,  IP rating
Additional requirements  Lead wire, connector, coupling ,encoder,or other parts
Options
---Magnetic encoder provides feedback for your accurate control of motor speed and positioning.
---Capacitor& resistor for EMC suppression.
---Special shaft material and dimensions.
---Custom design; OEM products available.
---Professional DC gear motor customization at various RPM, torques, OD, voltages,  IP rating , etc.
CUSTOMIZED DESIGN WELCOME
Twirl  can provide special shaft or flange version upon request. Gearbox design, Shaft Material, Flange shape and IP level can be made according to your requirement.
Certificates&Qualifications
CE, ROHS, SGS, TUV, IATF16949 quality management system
The following is the specification of the standard product.
