Robotic Lawn Mower Motor

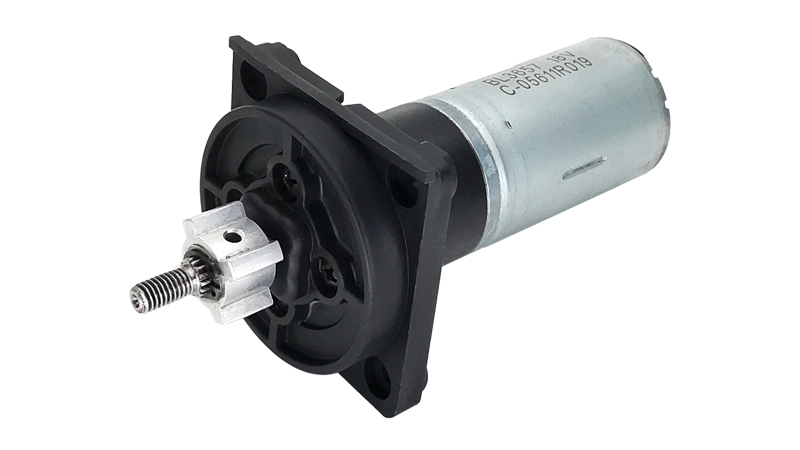

36mm 18V bldc gear motor for Robotic Lawn Mower

No load speed 42rpm
Rated load speed 35rpm
Rated load torque 25kg.cm
36mm 18V  bldc gear motor for Robotic Lawn Mower
36mm 18V  bldc gear motor for Robotic Lawn Mower
36mm 18V  bldc gear motor for Robotic Lawn Mower
36mm 18V  bldc gear motor for Robotic Lawn Mower

Description

Reviews

Motor solutions for  robot lawn mower

Product description

Product name 36mm diameter bldc planet gear motor
Gear type Straight gearwheel planet gearhead
Motor type dc brushless motor  with intergated driver
Gearbox housing material Powder Metallurgy
Geartrain material Powder Metallurgy
Shaft material 40Cr Steel
Output shaft support Dual Ball  bearing
Rotation direction CW/CCW reversible
OEM & ODM Service Available
Certificate CE,ROHS,SGS,TUV,IATF16949
Shaft Configuration D-cut,Keyway,Round ,Hexagon, Splined or other type
Customization item speed , torque,  flange , shaft,  IP rating
Additional requirements  Lead wire, connector, coupling ,encoder, brake ,or other parts
P/N PG36BL36184200-99.5K
Motor specs 18V 4200rpm
Reduction ratio 99.5/1
Output  No load speed 42rpm
Output rated load speed 35rpm
Output rated load torque 25kg.cm

Appearance size
