DC Planetary Gear Motor

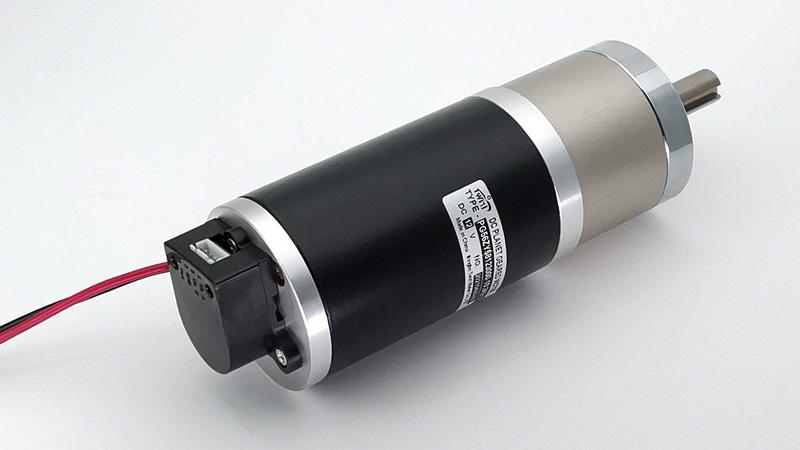

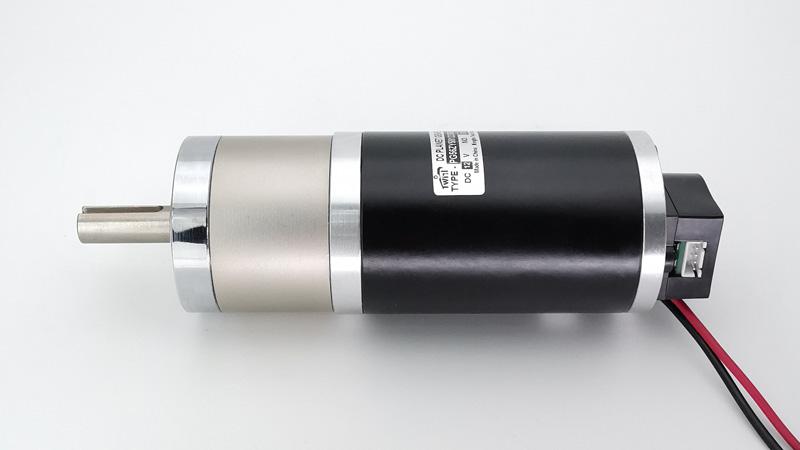

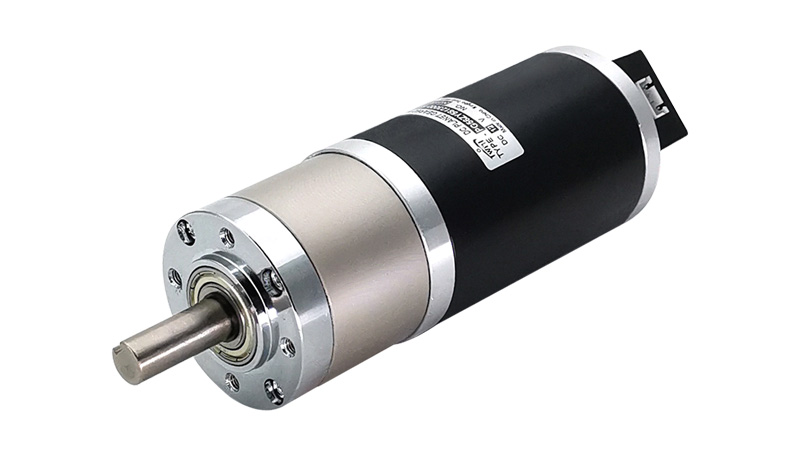

56mm 12V dc gear motor low rpm with encoder

PG56ZY58 series Diameter56mm

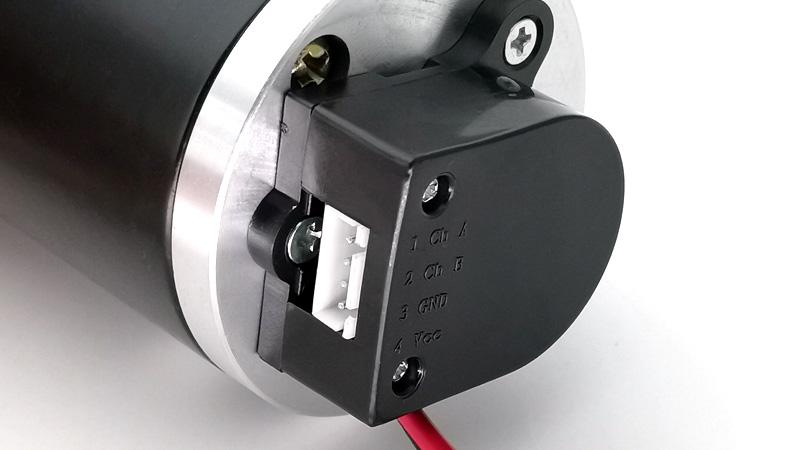

13ppr hall sensor magnet encoder
Rated torque:100kg.cm~400kg.cm
56mm 12V dc gear motor low rpm with encoder
56mm 12V dc gear motor low rpm with encoder
56mm 12V dc gear motor low rpm with encoder
56mm 12V dc gear motor low rpm with encoder
56mm 12V dc gear motor low rpm with encoder

Description

PDF Download

Reviews

Leading gear motor manufacturer in China
International standard,short delivery time,large selection, OEM service
PG56ZY58 series  Gearmotor consist of 56mm PG56 type planetary gearbox and 58mm  ZY58 type brushed motor,with encoder
Specifications
Product name PG56ZY58 series,56mm diameter planet gear motor
Motor type carbon-brush commutator
Gear type Straight gearwheel planet gearhead
Housing material Steel
Geartrain material Steel , Powdered Metal
Bearing at output shaft Ball  bearing
Lubricant Grease for high-low temperature
Axial play
Radial play
Rotation direction CW/CCW reversible
Backlash at no-load
Operating temperature range  -40 °C~+100°C
Noise (DB)
Lifetime  1000+ hours (varies by application)
OEM & ODM Service Available
Certificate CE,ROHS,SGS,TUV,IATF16949
Encoder13PPR ,Click ME-3237D to see details
Specifications
---Various gear ratios enable either speed reduction or to increase the torque capability.
---Advantageous torque with minimum space requirements.
---Suitable for continuous, reversing and intermittent operation.
---Can be installed in any mounting position.
---High Torque, Low Energy Consumption, Low Noise.
The following is the specification of the standard product.
Outline of gearmotor with encoder
 Encoder Specifications
CUSTOMIZED DESIGN WELCOME
Do you need special adaptation for planetary gear drived out of the standard type?
No problem,Besides the standard,we can provide you with the following: output shaft, front cover, intermediary plate,housing,performance,etc.
Packing and delivery

Fast delivery Date : 1-2 weeks for samples, 3-4 weeks for mass production.

*shockproof foam packing

*4 pcs each layer

*3 layers each carton

*carton meas.:32*28*26cm

*12pcs/ctn

*N.W.:21kgs

*G.W.:22kgs

*recycled wooden pallet

*stretch film

*binding tape

*Shipping mark on each carton and pallet
