DC Planetary Gear Motor

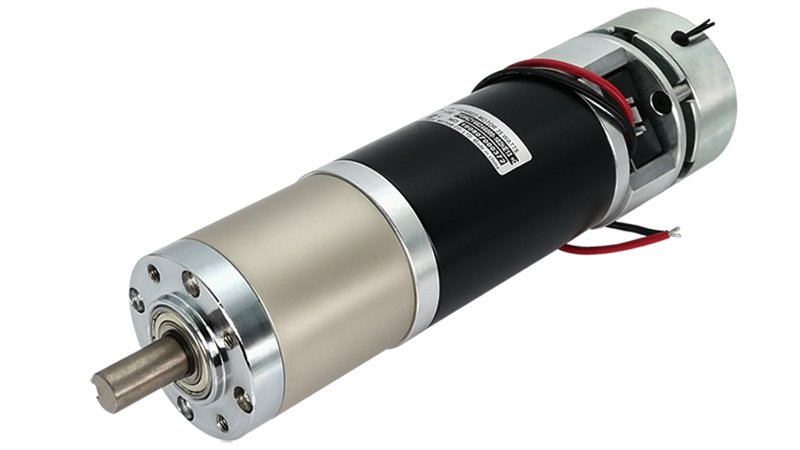

56mm planetary gear motor with encoder and clutch

PG56ZY58 series Diameter56mm
13ppr encoder and electromagnetic brake
Rated torque:100kg.cm~400kg.cm
56mm planetary gear motor with encoder and clutch
56mm planetary gear motor with encoder and clutch
56mm planetary gear motor with encoder and clutch
56mm planetary gear motor with encoder and clutch

Description

Reviews

Quick Details
Place of Origin Zhejiang,China
Brand Name Twirl Motor
Certification CE, ROHS, SGS, TUV, IATF16949
OEM & ODM Service Available
Supply Ability 180000 Pieces/per Month
Lead time  1-2 weeks for samples, 3-4 weeks for mass production.
Sample MOQ  1 Piece
Mass production MOQ 500 pieces
Payment term T/T, Paypal ,WesternUnion
Product features
Product name 56mm diameter planet gear motor with encoder and brake
Motor type carbon-brush commutator
Gear type Straight gearwheel,metal  planet gearhead
Customization item speed ,torque, flange ,shaft, IP rating  or other item
Voltage: 12VDC,24VDC,36VDC or customization
Output Shaft Shape D-cut,Keyway,Round ,Hexagon, or customized
Output Power 30~80Watt or customized
Two channel hall effect encoder 3PPR,7PPR, 13PPR Click ME3237D to see details
Noise (DB)
Lifetime  1000+ hours (varies by application)
Gearbox data (PG56)
 Gearbox housing material Powder Metallurgy
Geartrain material 40Cr Steel , Powder Metallurgy
Bearing at output shaft Dual Ball  bearing
Lubricant in gearbox  Graphene oil
Axial play
Radial play
Rotation direction CW/CCW reversible
Backlash at no-load
Operating temperature range  -40 °C~+100°C
Motor data(ZY58)
How to calculate the output data of  the geared motor?
1:Output  no load speed=Motor no load speed /reduction ratio
2:Output  rated load speed=Motor rated speed /reduction ratio
3.Output rated load torque= motor rated torque X reduction ratio X gearbox efficiency

An example of  PG56 Gearbox+ ZY58 Motor assembly
Model Number  PG56 ZY58243000-13K
Reduction ratio 13:1
Motor name  ZY58243000
Output  no load speed 230rpm +/- 10%
Output rated load speed 184rpm  +/- 10%
Output rated load torque 12kg.cm
 Geared motor assembly Outline
Encoder specs.
Brake specs

It is a power off type electromagnetic brake which is connected directly with the motor.

The motor will stop instantly  and keep load when the supply power is off.

It is specially suitable for the safety brake in the condition of unconsciously power off.

Firstly connect the brake wire to the 12V/24V power, and then connect the motor wire to another  12V/24V power.

The  time interval  should above 200mS.

When the motor power is on,the brake release.When the motor  power is off,the brake will operate.


How does an electromagnetic brake work? Please to see it.

Rated voltage 24VDC 12VDC
Rated power  8Watt
Rated torque 1.5Nm
Max speed 6000rpm
engaging time 20ms
disconnecting time 25ms
max working air gap 0.4mm
Packing and delivery
Fast delivery Date : 1-2 weeks for samples, 3-4 weeks for mass production.

*shockproof foam packing

*10pcs each layer

*4 layers each carton

*carton meas.:32*28*26cm

*40pcs/ctn

*N.W.:18kgs

*recycled wooden pallet

*stretch film

*binding tape
