Brushless DC Gear Motor

56mm high torque brushless dc gear motor

PG56BL60 series Diameter56mm
Rated power 120Watt
Rated torque:100kg.cm~400kg.cm
56mm high torque brushless dc gear motor
56mm high torque brushless dc gear motor

Description

Reviews

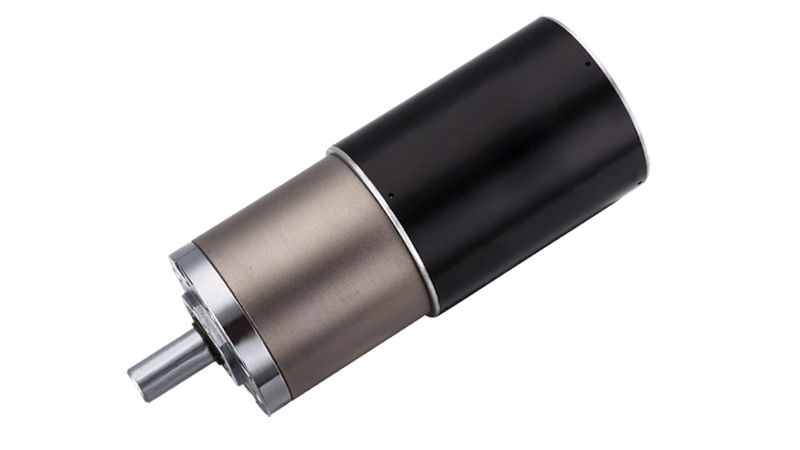

PG56BL60 series  Gearmotors consist of 56mm planetary gearboxes and 60mm BLDC motors.


The planetary gear motors are equipped with a hall sensor type brushless DC motor to increase the torque and lower the output speed to meet your application or project demands.Twirl offers rushless DC Gearmotors with hall only feedback or with a control board that is fully integrated to the internal motor.When mated to our planetary gearbox, this brushless gearmotor offers extremely long life and high torque in a compact size.

Benefits of the brushless motor
DC motors with no brushes mean no mechanical contact, no dust and no sparks.There are no motor brushes to wear out because the windings are electrically commutated.​Exquisitely efficient small form factor BLDC motor that has peak operating efficiency . High torque from a small form factor, with low power consumption and peak performance at lower RPM for quiet operation.
Speed and direction is controlled easily and accurately, offering you a full range of options with every motor.
The  Brushless Motors offers distinct advantages over the competition: exceptionally long service life (over 20000 operating hours), very low sound level (no brushed switching), good efficiency (optimized motor control), integrated sensors and excellent dynamics.
This motor features built-in controls,versatile and very simple to use.
Why do we use BLDC motors?
In manufacturing, brushless motors are primarily used for motion control, positioning or actuation systems. Brushless motors are ideally suited for manufacturing applications because of their high power density, good speed-torque characteristics, high efficiency, wide speed ranges and low maintenance.

CUSTOMIZED DESIGN WELCOME

Twirl  can provide special shaft or flange version upon request. Gearbox design, Shaft Material, Flange shape and IP level can be made according to your requirement.
请替换示例图片
Product features
Certification CE, ROHS, SGS, TUV, IATF16949
OEM & ODM Service Available
Gear type metal  planetary  gearhead
Motor type DC brushless motor
Shaft Configuration D-cut,Keyway,Round ,Hexagon, Splined or customized
Voltage: 12VDC,24VDC,36VDC
Customization item speed , torque,  flange , shaft,  IP rating
Additional requirements  Lead wire, connector, coupling ,encoder ,brake
 Planetary Gearbox features
Gearbox housing material 1045 Steel
Geartrain material 40Cr Steel , Powder Metallurgy
Shaft material 40Cr Steel
Bearing at output shaft Dual Ball  bearing
Lubricant in gearbox  Graphene oil
Axial play <0.3mm
Radial play <0.05mm(5mm from mounting face)
Rotation direction CW/CCW reversible
Backlash at no-load <1°
Operating temperature range  -40 °C~+100°C
Motor Data
How to calculate the output data of  the geared motor?
1:Output  no load speed=Motor no load speed /reduction ratio
2:Output  rated load speed=Motor rated speed /reduction ratio
3.Output rated load torque= motor rated torque X reduction ratio X gearbox efficiency

 Bushless motor Connection

1)Please select the driver according to the current value.We can connect outside for function of CW/CCW,start /stop and speed adjust.

2)We can supply with internal driver and it’s easy to use and have compact structure. The current of product which is bigger than 60mm(including 60mm) is very big. So we don’t advise to use internal driver.
