Brushless DC Motors

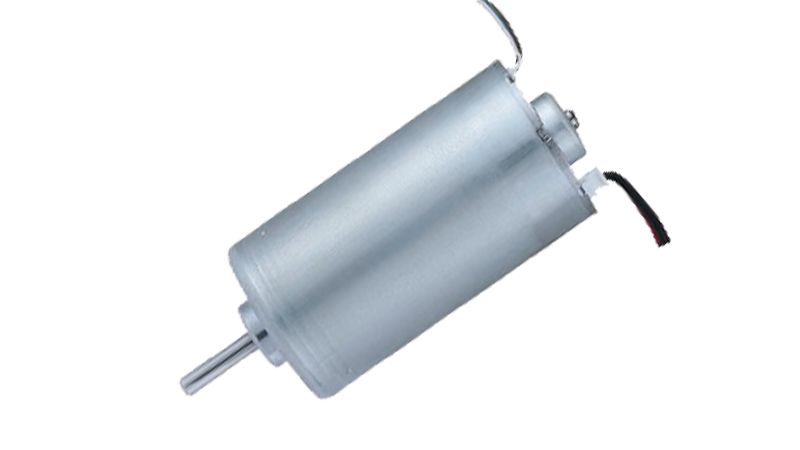

BLDC4266 42mm 24v bldc motor

BLDC4266 series Diameter 42mm
bldc motor with built-in controller
Rated power10~ 50Watt
BLDC4266  42mm 24v bldc motor
BLDC4266  42mm 24v bldc motor

Description

Reviews

Benefits of the brushless motor
DC motors with no brushes mean no mechanical contact, no dust and no sparks.There are no motor brushes to wear out because the windings are electrically commutated.​Exquisitely efficient small form factor BLDC motor that has peak operating efficiency . High torque from a small form factor, with low power consumption and peak performance at lower RPM for quiet operation.
Speed and direction is controlled easily and accurately, offering you a full range of options with every motor.
The  Brushless Motors offers distinct advantages over the competition: exceptionally long service life (over 20000 operating hours), very low sound level (no brushed switching), good efficiency (optimized motor control), integrated sensors and excellent dynamics.
This motor features built-in controls,versatile and very simple to use.
Why do we use BLDC motors?
In manufacturing, brushless motors are primarily used for motion control, positioning or actuation systems. Brushless motors are ideally suited for manufacturing applications because of their high power density, good speed-torque characteristics, high efficiency, wide speed ranges and low maintenance.
BLDC4266 outline
Motor Data
 Bushless motor Connection
How to operate the brushless wires?

This motor features built-in controls,versatile and very simple to use.

1)Red wire(+) of  the controller is connected to +24VDC, and black wire(-)  to GND.

2)Inner joint with 5VDC potentiometer. “3PIN” to black wire(-),”1PIN” to green wire, “2PIN ”to brown wire (5VDC),when left-hand turning,speed drop,right -hand  turning, speed up.

3)When the white wire is shut off, the motor runs at highest speed with CW,

4)The motor stops running when the white wire is connected to black one.

5) When the yellow wire is connected to black one, the motor runs with CCW.

6) The blue wire which can be detected by OSC means speed signal output.
